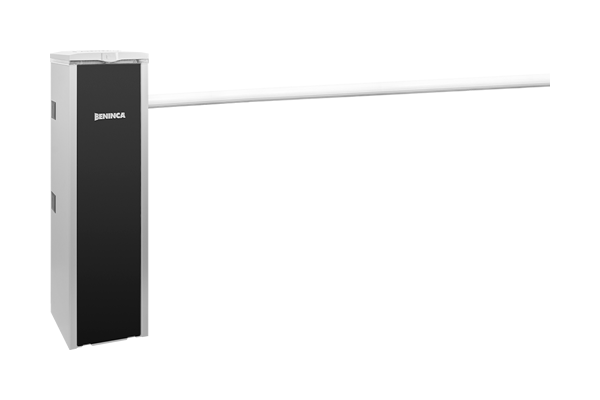

DIVA3 - 3.0 METRE 24 VOLT BOOM GATE
OVERVIEW
24 Vdc brushless boom gate for continuous use with integrated control unit, encoder and battery charger. Electric motor with brushless technology that guarantees highest performance, reliability, fluid movements and a very long lifespan of the operator. This represents the ideal solution in contexts requiring a particularly intensive use (Mean Cycles Between Failures = 5 million cycles) Oil lubricated metal reductions and gear in bronze alloy allow minimising the wear process. The upper cover allows a fast access to the control unit, it is characterised by a lock with a personalised key for the opening and hinges that facilitate the installation and the wiring operations. RGB Led lights integrated in the cover and on the boom, with the possibility to work as a flashing light, a presence light with fixed colour, settable through the wiring. Through the accessory DIVA.TL, it is possible to adjust the colour of the lights according to the boom position (traffic light function). Illumination and light diffusion systems on both the cover and the boom designed to guarantee the maximum visibility in every direction and work as footpath lights under the arm itself. Highest performance and speed (opening 0.9 s, slowdowns excluded).
24 Vdc brushless boom gate for continuous use with integrated control unit, encoder and battery charger. Electric motor with brushless technology that guarantees highest performance, reliability, fluid movements and a very long lifespan of the operator. This represents the ideal solution in contexts requiring a particularly intensive use (Mean Cycles Between Failures = 5 million cycles) Oil lubricated metal reductions and gear in bronze alloy allow minimising the wear process. The upper cover allows a fast access to the control unit, it is characterised by a lock with a personalised key for the opening and hinges that facilitate the installation and the wiring operations. RGB Led lights integrated in the cover and on the boom, with the possibility to work as a flashing light, a presence light with fixed colour, settable through the wiring. Through the accessory DIVA.TL, it is possible to adjust the colour of the lights according to the boom position (traffic light function). Illumination and light diffusion systems on both the cover and the boom designed to guarantee the maximum visibility in every direction and work as footpath lights under the arm itself. Highest performance and speed (opening 0.9 s, slowdowns excluded).
PRICING
DIVA3 -
Boom gate motor, steel enclosure and logic control board.
$5763.00
DIVA3BOOM -
3.0 metre aluminum boom arm with LED lighting
$739.00
REMBENINCA -
4 channel 433mhz key ring style remote control. - BUY ONLINE
$69.00
BENINCAKEYPAD -
Wireless outdoor keypad - BUY ONLINE
$415.00
SOLAROPT2425 -
2x25W panel, 2x26ah battery, regulator, enclosure and full mounting post. - BUY ONLINE
$1197.00
SPECIFICATION
Motor Voltage -
24 volts DC
Current Standby -
40mA
Current at use -
1.5A
Opening time -
0.9 seconds
Maximu boom length-
3.0 metres
Duty cycle -
100%
Height -
1130mm
Width -
330mm
Depth -
320mm
Weight -
49 Kg
IP rating -
IP44
DOWNLOAD & MANUALS
INSTALL MANUAL -
BROCHURE -
OPTIONAL
Boom Support -
When you read most boom gate manuals carefully it is specified that booms over three metres in length should have a boom support. Boom supports come in various forms and can be used in conjunction with safety and security. The simplest form is drop down leg. Next you have a fixed boom support and finally boom support with locking magnetic lock for the boom.
Photocells -
A must have if you use automatic closing function is photocells. Photocells provide an extra level of safety to prevent boom gates from closing on vehicles or pedestrians. Boom gates can have a single set between the boom gate and the boom support or multiple sets if desired at various heights. With this sort of automation be sure to choose a quality photocell with filters like the BEAMFLIP or BEAMFLIPBATT and install using screened cable.
Mains Power Filter -
Boom gate automation like this usually is installed on commercial and industrial sites where you can be pretty certain the mains power is less than desirable. Dirty power can result in lack of reliability and increased service costs. Installing a good quality filter will not only guard against spikes and surges but clean up the power before it reaches your electronics.
When you read most boom gate manuals carefully it is specified that booms over three metres in length should have a boom support. Boom supports come in various forms and can be used in conjunction with safety and security. The simplest form is drop down leg. Next you have a fixed boom support and finally boom support with locking magnetic lock for the boom.
Photocells -
A must have if you use automatic closing function is photocells. Photocells provide an extra level of safety to prevent boom gates from closing on vehicles or pedestrians. Boom gates can have a single set between the boom gate and the boom support or multiple sets if desired at various heights. With this sort of automation be sure to choose a quality photocell with filters like the BEAMFLIP or BEAMFLIPBATT and install using screened cable.
Mains Power Filter -
Boom gate automation like this usually is installed on commercial and industrial sites where you can be pretty certain the mains power is less than desirable. Dirty power can result in lack of reliability and increased service costs. Installing a good quality filter will not only guard against spikes and surges but clean up the power before it reaches your electronics.
