ASA6000
DROPGATE - 8 METRE 12 VOLT
OVERVIEW

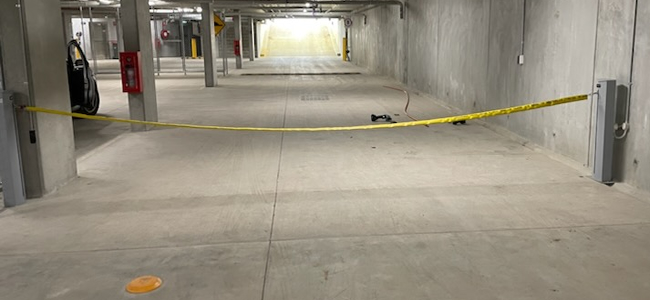

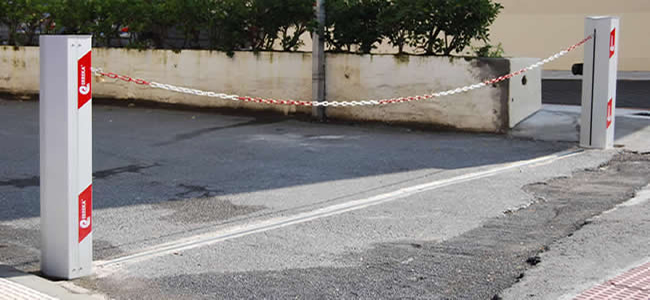

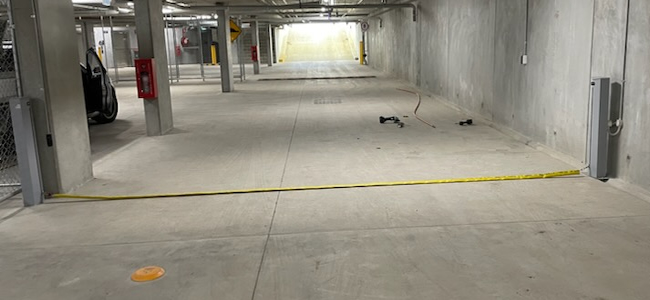

Drop Gate is an amazing traffic control device in that it can control access to personal parking areas due to it's ability to raise and lower its cable up to 8.0 metres in width. This makes it ideal for car park entrances and caravan parks where you would otherwise have to use two boom gates. Another great idea is the protection of multiple personal parking spaces. The drop gate can be controlled by all the usual access methods but simply plug in a wireless receiver and remote controls are a handy way to go.
TO WATCH A VIDEO OF THE DROPGATE CLICK HERE
PRICING
DROPMASTER -
Master unit with built in logic control unit.
$2733.00

DROPSLAVE -
Slave side - not logic control
$2379.00

DROPCABLE -
Priced per metre
$41.00

DROPSLEEVE -
Priced per metre
$16.00

SPECIFICATION
Motor Voltage -
12 volts DC
Current Standby -
40mA
Current at use -
1.0A
Opening time -
1 second
Maximum chain length-
8 metres
Duty cycle -
100%
Height -
700mm
Width -
550m
Depth -
300mm
Weight -
25 Kg each side plus cable
DOWNLOAD & MANUALS
INSTALL MANUAL -
Click here to download the installation manual.
OPTIONAL
Photocells -
A must have if you use automatic closing function is photocells. Photocells provide an extra level of safety to prevent boom gates from closing on vehicles or pedestrians. Boom gates can have a single set between the boom gate and the boom support or multiple sets if desired at various heights. With this sort of automation be sure to choose a quality photocell with filters like the BEAMFLIP or BEAMFLIPBATT and install using screened cable.

Mains Power Filter -
Boom gate automation like this usually is installed on commercial and industrial sites where you can be pretty certain the mains power is less than desirable. Dirty power can result in lack of reliability and increased service costs. Installing a good quality filter will not only guard against spikes and surges but clean up the power before it reaches your electronics.
