LUXE - 6.0 METRE BOOM GATE SKIRT

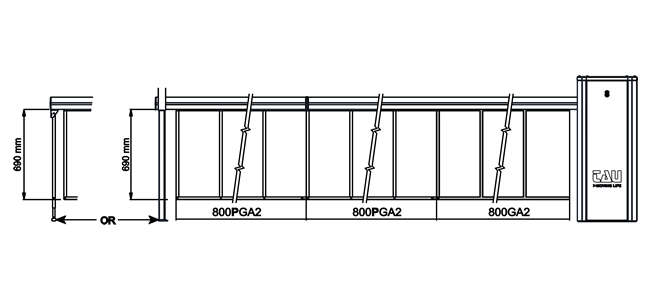

It is possible to add a "skirt" to the LUXE 6.0 metre boom gate. The skirt is a folding collection of aluminium flat bars that drop down from the boom when the boom is down but fold in line with the boom when open or vertical.
The purpose of the skirt is two fold. First it is designed to restrict pedestrians from ducking under the boom.
Second it increases visibility to traffic.
To add a skirt it is best not to start with a standard LUXEKIT but to build your kit from the items priced below -
- 1 x LUXE - Boom gate without tensioning springs
- 2 x YELLOWSPRING - Boom gate tensioning springs
- 2 x AE3BOOM - Two 3.0 metre boom lengths
- 1 x GICOUPLING - Boom joint section
- 1 x RAFRAME - Boom hub end brace
- 1 x LUXESKIRTGA2 - Lead skirt section
- 2 x LUXESKIRTPGA2 - Two secondary skirt sections
- 1 x BOOMSUPPORT - Boom end support
- (Opt) BOOMSUPPMAG - Boom end support with magnetic lock
Other options in control and safety should be added as required .
Boom gate motor, steel enclosure, and logic control board
Boom gate tensioning spring
Three metre elliptical boom section
Reinforce section to join three metre booms
Reinforcement insert for the boom hub end
lead section of boom skirt - closest to the hub
Secondary sections of the boom skirt (Two required)
Catch boom support
Catch boom support with magnetic boom lock
4 channel 433mhz key ring style remote control.
TAU wireless outdoor keypad
Galvanised base plate with tie bolts
Boom LED kit for booms to 8 metres in length
Boom rubber edge strip for booms to 8 metres in length
Boom LED kit for boom gate cabinet top
